CUSTOMIZABLE HIGH-PERFORMANCE PUMPS

Universal fit for custom high-performance applications

Universal In-Tank Pumps

516
516

Fuel: GAS
Horsepower: 300
Flow Rate (lph): 155
Flow Rate (gph): 41
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 50
Max System Pressure (kPa): 345
Filter Group:
A or E
Inlet Diameter: 22mm
Inlet Configuration: Centrally located

F10000137
F10000137

Fuel: GAS
Horsepower: 350
Flow Rate (lph): 190
Flow Rate (gph): 40
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 87
Max System Pressure (kPa): 600
Filter Group:
B
Inlet Diameter: 14mm
Inlet Configuration: 0 degree outlet fitting to inlet orientation

F10000302
F10000302

Fuel: FLEX
Horsepower: 450
Flow Rate (lph): 230
Flow Rate (gph): 61
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 87
Max System Pressure (kPa): 600
Filter Group: B
Inlet Diameter: 14mm
Inlet Configuration: 0 degree outlet fitting to inlet orientation

F20000311
F20000311

Fuel: GAS
Horsepower: 500
Flow Rate (lph): 255
Flow Rate (gph): 67
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 112
Max System Pressure (kPa): 772
Filter Group: A
Inlet Diameter: 22mm
Inlet Configuration: Centrally located

F20000141
F20000141

Fuel: GAS
Horsepower: 350
Flow Rate (lph): 190
Flow Rate (gph): 50
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 87
Max System Pressure (kPa): 600
Filter Group: B
Inlet Diameter: 14mm
Inlet Configuration: 0 degree outlet fitting to inlet orientation

F10000305-2
F10000305

Fuel: FLEX
Horsepower: 450
Flow Rate (lph): 230
Flow Rate (gph): 61
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 87
Max System Pressure (kPa): 600
Filter Group: B
Inlet Diameter: 14mm
Inlet Configuration: 0 degree outlet fitting to inlet orientation

F20000312
F20000312

Fuel: GAS
Horsepower: 500
Flow Rate (lph): 255
Flow Rate (gph): 67
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 112
Max System Pressure (kPa): 772
Filter Group: B
Inlet Diameter: 14mm
Inlet Configuration: 180 degree outlet fitting to inlet orientation

F20000313
F20000313

Fuel: GAS
Horsepower: 500
Flow Rate (lph): 255
Flow Rate (gph): 67
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 112
Max System Pressure (kPa): 772
Filter Group: B
Inlet Diameter: 14mm
Inlet Configuration: 0 degree outlet fitting to inlet orientation

F90000262
F90000262

Fuel: GAS
Horsepower: 650
Flow Rate (lph): 400
Flow Rate (gph): 106
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 87
Max System Pressure (kPa): 600
Filter Group: B
Inlet Diameter: 14mm
Inlet Configuration: 0 degree outlet fitting to inlet orientation

F90000274
F90000274

Fuel: FLEX
Horsepower: 750
Flow Rate (lph): 450
Flow Rate (gph): 119
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 112
Max System Pressure (kPa): 772
Filter Group: B
Inlet Diameter: 14mm
Inlet Configuration: 0 degree outlet fitting to inlet orientation

F90000273
F90000273

Fuel: GAS
Horsepower: 650
Flow Rate (lph): 400
Flow Rate (gph): 106
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 112
Max System Pressure (kPa): 772
Filter Group: B
Inlet Diameter: 14mm
Inlet Configuration: 0 degree outlet fitting to inlet orientation

F90000267
F90000267

Fuel: FLEX
Horsepower: 750
Flow Rate (lph): 450
Flow Rate (gph): 119
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 87
Max System Pressure (kPa): 600
Filter Group: B
Inlet Diameter: 14mm
Inlet Configuration: 0 degree outlet fitting to inlet orientation

F90000285
F90000285

Fuel: FLEX
Horsepower: 985
Flow Rate (lph): 470
Flow Rate (gph): 125
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 112
Max System Pressure (kPa): 772
Internal Check Valve: Yes
Recommended for Boosted Applications: Yes

F90000295
F90000295

Fuel: FLEX
Horsepower: 985
Flow Rate (lph): 490
Flow Rate (gph): 130
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 112
Max System Pressure (kPa): 772
Internal Check Valve: No
Recommended for Boosted Applications: Yes

GSS242-2
GSS242

Fuel: GAS
Horsepower: 350
Flow Rate (lph): 190
Flow Rate (gph): 50
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 50
Max System Pressure (kPa): 345
Filter Group: A
Inlet Diameter: 22mm
Inlet Configuration: 0 degree outlet fitting to inlet orientation

GSS250
GSS250

Fuel: GAS
Horsepower: 350
Flow Rate (lph): 190
Flow Rate (gph): 50
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 50
Max System Pressure (kPa): 345
Filter Group: B
Inlet Diameter: 14mm
Inlet Configuration: 0 degree outlet fitting to inlet orientation

GSS278
GSS278

Fuel: GAS
Horsepower: 350
Flow Rate (lph): 190
Flow Rate (gph): 50
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 50
Max System Pressure (kPa): 345
Filter Group: B
Inlet Diameter: 14mm
Inlet Configuration: 180 degree outlet fitting to inlet orientation

F90000262
F90000288

Fuel: GAS
Horsepower: 650
Flow Rate (lph): 340
Flow Rate (gph): 90
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 112
Max System Pressure (kPa): 772
Internal Check Valve: Yes
Recommended for Boosted Applications: Yes

GSS307
GSS307

Fuel: GAS
Horsepower: 500
Flow Rate (lph): 255
Flow Rate (gph): 67
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 50
Max System Pressure (kPa): 345
Filter Group: A
Inlet Diameter: 22mm
Inlet Configuration: Centrally located

GSS315
GSS315

Fuel: GAS
Horsepower: 500
Flow Rate (lph): 255
Flow Rate (gph): 67
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 50
Max System Pressure (kPa): 345
Filter Group: B
Inlet Diameter: 14mm
Inlet Configuration: 180 degree outlet fitting to inlet orientation

GSS317
GSS317

Fuel: GAS
Horsepower: 500
Flow Rate (lph): 255
Flow Rate (gph): 67
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 50
Max System Pressure (kPa): 345
Filter Group: B
Inlet Diameter: 14mm
Inlet Configuration: 0 degree outlet fitting to inlet orientation

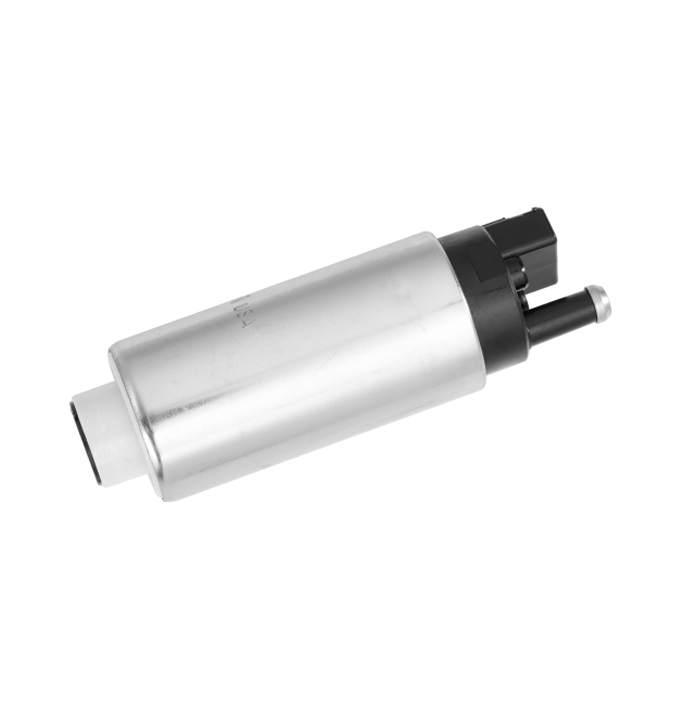

GSS340G3
GSS340G3

Fuel: GAS
Horsepower: 500
Flow Rate (lph): 255
Flow Rate (gph): 67
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 112
Max System Pressure (kPa): 772
Filter Group: A
Inlet Diameter: 22mm
Inlet Configuration: Centrally located

GSS341G3
GSS341G3

Fuel: GAS
Horsepower:
500
Flow Rate (lph):
255
Flow Rate (gph):
67
Pressure (psi):
50
Pressure (kPa):
 345
Max System Pressure (psi):
112
Max System Pressure (kPa):
772
Filter Group:
B
Inlet Diameter:
14mm
Inlet Configuration:
180 degree outlet fitting to inlet orientation

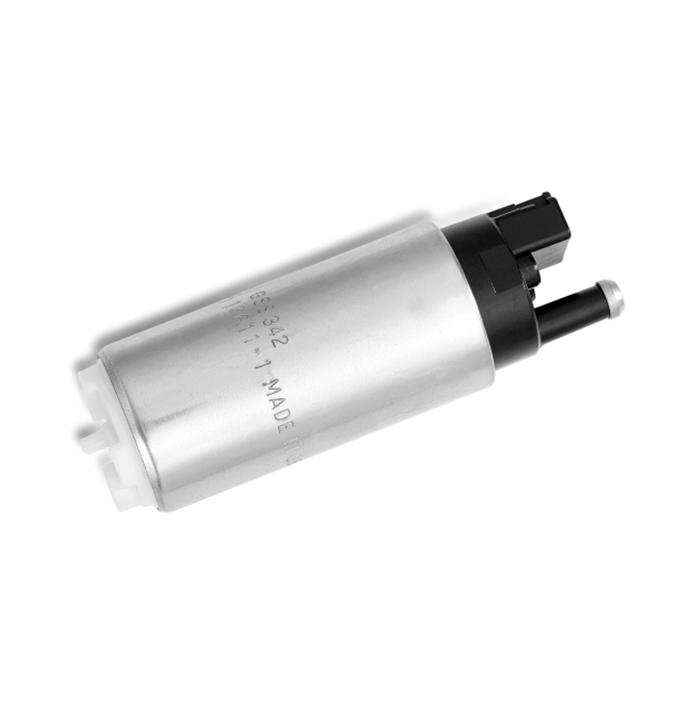

GSS342G3
GSS342G3

Fuel: GAS
Horsepower:
500
Flow Rate (lph):
255
Flow Rate (gph):
67
Pressure (psi):
50
Pressure (kPa):
345
Max System Pressure (psi):
112
Max System Pressure (kPa):
772
Filter Group:
B
Inlet Diameter:
14mm
Inlet Configuration:
0 degree outlet fitting to inlet orientation

GSS343G3
GSS343G3

Fuel: GAS
Horsepower:
500
Flow Rate (lph):
255
Flow Rate (gph):
67
Pressure (psi):
50
Pressure (kPa):
345
Max System Pressure (psi):
112
Max System Pressure (kPa):
772
Filter Group:
D
Inlet Diameter:
19mm
Inlet Configuration:
0 degree outlet fitting to inlet orientation

GSS350G3
GSS350G3

Fuel: GAS
Horsepower:
650
Flow Rate (lph):
350
Flow Rate (gph):
92
Pressure (psi):
50
Pressure (kPa):
345
Max System Pressure (psi):
112
Max System Pressure (kPa):
772
Filter Group:
A
Inlet Diameter:
22mm
Inlet Configuration:
Centrally located

GSS351G3
GSS351G3

Fuel: GAS
Horsepower:
650
Flow Rate (lph):
350
Flow Rate (gph):
92
Pressure (psi):
50
Pressure (kPa):
345
Max System Pressure (psi):
112
Max System Pressure (kPa):
772
Filter Group:
B
Inlet Diameter:
14mm
Inlet Configuration:
180 degree outlet fitting to inlet orientation

GSS352G3
GSS352G3

Fuel: GAS
Horsepower:
650
Flow Rate (lph):
350
Flow Rate (gph):
92
Pressure (psi):
50
Pressure (kPa):
345
Max System Pressure (psi):
112
Max System Pressure (kPa):
772
Filter Group:
B
Inlet Diameter:
14mm
Inlet Configuration:
0 degree outlet fitting to inlet orientation

GSS353G3
GSS353G3

Fuel: GAS
Horsepower:
650
Flow Rate (lph):
350
Flow Rate (gph):
92
Pressure (psi):
50
Pressure (kPa):
345
Max System Pressure (psi):
112
Max System Pressure (kPa):
772
Filter Group:
D
Inlet Diameter:
19mm
Inlet Configuration:
0 degree outlet fitting to inlet orientation

Super Flow In-Tank Dual Pump Family

TCA946
TCA946

Fuel: GAS
Horsepower: 1000
Flow Rate (lph): 500
Flow Rate (gph): 132
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 87
Max System Pressure (kPa): 600
Filter Group: Filter Attached
Inlet: Pumps are in a bracket with filters attached

TCA947
TCA947

Fuel: GAS
Horsepower: 1250
Flow Rate (lph): 550
Flow Rate (gph): 145
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 87
Max System Pressure (kPa): 600
Filter Group: Filter Attached
Inlet: Pumps are in a bracket with filters attached

TCA948
TCA948

Fuel: FLEX
Horsepower: 1450
Flow Rate (lph): 725
Flow Rate (gph): 192
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 87
Max System Pressure (kPa): 600
Filter Group: Filter Attached
Inlet: Pumps are in a bracket with filters attached

TCA947
TCA954

Fuel: GAS
Horsepower: 1250
Flow Rate (lph): 550
Flow Rate (gph): 145
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 112
Max System Pressure (kPa): 772
Filter Group: Filter Attached
Inlet: Pumps are in a bracket with filters attached

TCA948
TCA955

Fuel: FLEX
Horsepower: 1450
Flow Rate (lph): 725
Flow Rate (gph): 192
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 112
Max System Pressure (kPa): 772
Filter Group: Filter Attached
Inlet: Pumps are in a bracket with filters attached

TCA948
TCA956

Fuel: FLEX
Horsepower: 1600
Flow Rate (lph): 725
Flow Rate (gph): 192
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 112
Max System Pressure (kPa): 772
Filter Group: Filter Attached
Inlet: Pumps are in a bracket with filters attached

In-Tank Pump Kits

TCD301
TCD301

Fuel: FLEX
Horsepower: 750
Flow Rate (lph): 450
Flow Rate (gph): 119
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 112
Max System Pressure (kPa): 772
Filter Group: B
Inlet Diameter: 14mm
Inlet Configuration: 0 degree outlet fitting to inlet orientation

TCD302
TCD302

Fuel: GAS
Horsepower: 650
Flow Rate (lph): 400
Flow Rate (gph): 106
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 112
Max System Pressure (kPa): 772
Filter Group: B
Inlet Diameter: 14mm
Inlet Configuration: 0 degree outlet fitting to inlet orientation

TCD350
TCD350

Fuel: FLEX
Horsepower: 650
Flow Rate (lph): 340
Flow Rate (gph): 90
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 112
Max System Pressure (kPa): 772
Filter Group: Filter Attached
Inlet: Pumps are in a bracket with filters attached

TCD470
TCD470

Fuel: GAS
Horsepower: 985
Flow Rate (lph): 470
Flow Rate (gph): 125
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 112
Max System Pressure (kPa): 772
Filter Group: Filter Attached
Inlet: Pumps are in a bracket with filters attached

TCD495
TCD495

Fuel: FLEX
Horsepower: 985
Flow Rate (lph): 490
Flow Rate (gph): 130
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 112
Max System Pressure (kPa): 772
Filter Group: Filter Attached
Inlet: Pumps are in a bracket with filters attached

GCA340G3
GCA340G3

Application Guide
Fuel:
GAS
Horsepower: 500
Flow Rate (lph): 255
Flow Rate (gph): 67
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 112
Max System Pressure (kPa): 772
Filter Group: A
Inlet Diameter: 22mm
Inlet Configuration: Centrally located

GCA341G3
GCA341G3

Application Guide
Fuel:
GAS
Horsepower: 500
Flow Rate (lph): 255
Flow Rate (gph): 67
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 112
Max System Pressure (kPa): 772
Filter Group: B
Inlet Diameter: 14mm
Inlet Configuration: 180 degree outlet fitting to inlet orientation

GCA342G3
GCA342G3

Application Guide
Fuel:
GAS
Horsepower: 500
Flow Rate (lph): 255
Flow Rate (gph): 67
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 112
Max System Pressure (kPa): 772
Filter Group: B
Inlet Diameter: 14mm
Inlet Configuration: 0 degree outlet fitting to inlet orientation

GSS343G3-2
GCA343G3

Application Guide
Fuel:
GAS
Horsepower: 500
Flow Rate (lph): 255
Flow Rate (gph): 67
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 112
Max System Pressure (kPa): 772
Filter Group: D
Inlet Diameter: 19mm
Inlet Configuration: GM-style offset inlet

GCA350G3
GCA350G3

Application Guide
Fuel:
GAS
Horsepower: 650
Flow Rate (lph): 350
Flow Rate (gph): 92
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 112
Max System Pressure (kPa): 772
Filter Group: A
Inlet Diameter: 22mm
Inlet Configuration: Centrally located

GCA351G3
GCA351G3

Application Guide
Fuel:
GAS
Horsepower: 650
Flow Rate (lph): 350
Flow Rate (gph): 92
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 112
Max System Pressure (kPa): 772
Filter Group: B
Inlet Diameter: 14mm
Inlet Configuration: 180 degree outlet fitting to inlet orientation

GCA352G3
GCA352G3

Application Guide
Fuel:
GAS
Horsepower: 650
Flow Rate (lph): 350
Flow Rate (gph): 92
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 112
Max System Pressure (kPa): 772
Filter Group: B
Inlet Diameter: 14mm
Inlet Configuration: 0 degree outlet fitting to inlet orientation

GSS343G3-2
GCA353G3

Application Guide
Fuel:
GAS
Horsepower: 650
Flow Rate (lph): 350
Flow Rate (gph): 92
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 112
Max System Pressure (kPa): 772
Filter Group: D
Inlet Diameter: 19mm
Inlet Configuration: GM-style offset inlet

Pump-Kits-final
BKS1000

Fuel: GAS or FLEX
Horsepower: 1000
Flow Rate (lph): 550
Pressure (psi): 40

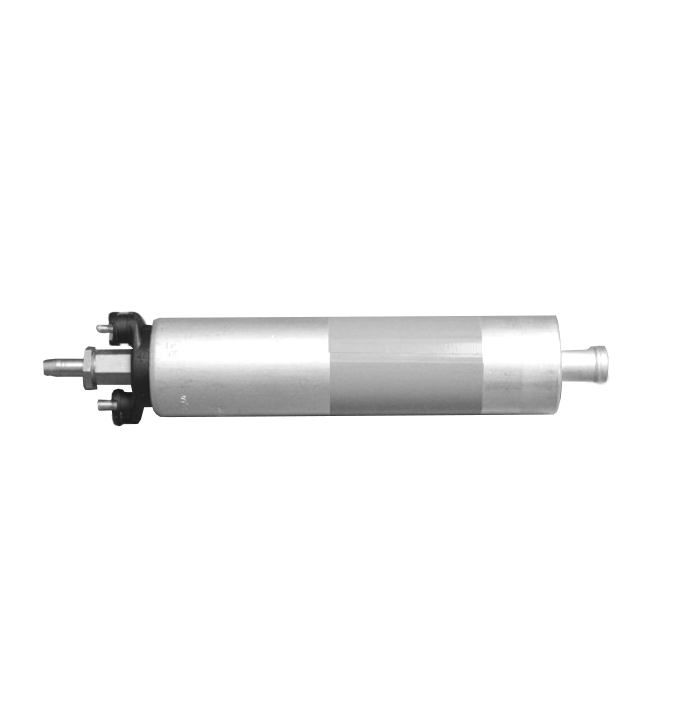

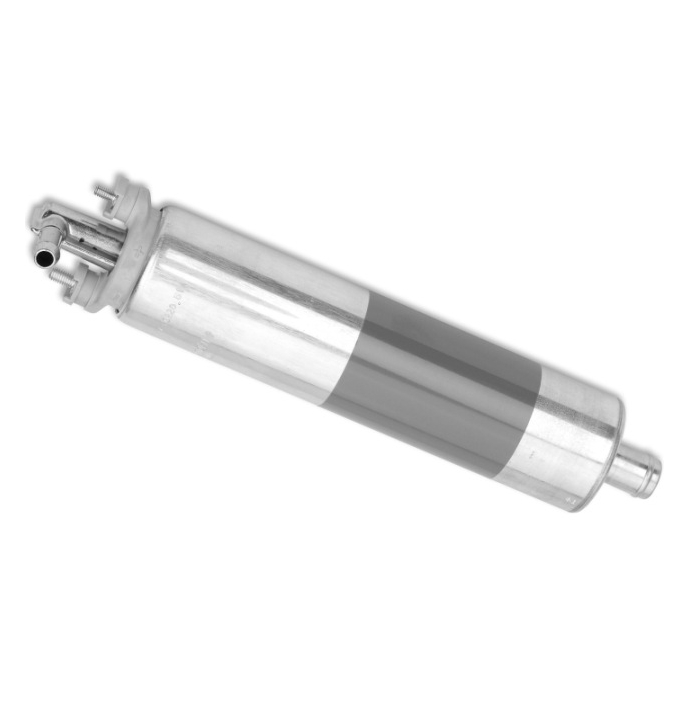

Universal In-Line Pumps

GSL391
GSL391

Fuel: GAS
Horsepower: 350
Flow Rate (lph): 190
Flow Rate (gph): 50
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 50
Max System Pressure (kPa): 345
Filter Group: N/A
Inlet Diameter: Depends on fitting–1x10mm female thread on pump
Inlet Configuration: Inline

GSL392
GSL392

Fuel: GAS
Horsepower: 500
Flow Rate (lph): 255
Flow Rate (gph): 67
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 50
Max System Pressure (kPa): 345
Filter Group: N/A
Inlet Diameter: Depends on fitting–1x10mm female thread on pump
Inlet Configuration: Inline

GSL394
GSL394

Fuel: GAS
Horsepower: 350
Flow Rate (lph): 190
Flow Rate (gph): 50
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 87
Max System Pressure (kPa): 600
Filter Group: N/A
Inlet Diameter: Depends on fitting–1x10mm female thread on pump
Inlet Configuration: Inline

Universal In-Line Pump Kits

GCL611
GCL611

Fuel: GAS
Horsepower: 500
Flow Rate (lph): 255
Flow Rate (gph): 67
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 50
Max System Pressure (kPa): 345
Filter Group: N/A
Inlet Diameter: N/A
Inlet Configuration: Inline

GCL620
GCL620

Fuel: GAS
Horsepower: 350
Flow Rate (lph): 190
Flow Rate (gph): 50
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 50
Max System Pressure (kPa): 345
Filter Group: N/A
Inlet Diameter: N/A
Inlet Configuration: Inline

GCL624
GCL624

Fuel: GAS
Horsepower: 650
Flow Rate (lph): 340
Flow Rate (gph): 90
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 87
Max System Pressure (kPa): 600
Filter Group: N/A
Inlet Diameter: N/A
Inlet Configuration: Inline screw pump

GCL627
GCL627

Fuel: GAS
Horsepower: 650
Flow Rate (lph): 340
Flow Rate (gph): 90
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 87
Max System Pressure (kPa): 600
Filter Group: N/A
Inlet Diameter: N/A
Inlet Configuration: Inline screw pump

All fuel pumps are available as a kit.

Filter Groups:
Group A fits 22mm outside diameter (OD) plastic and steel inlet
Group B fits 11mm OD inlet
Group D fits 19mm OD inlet
Group E fits 22mm OD steel inlet

View High-Performance Catalog

TI Automotive performance fuel systems are designed to install easily and deliver the feed your injectors need. As a Tier 1 OE supplier, we lead the industry in the development and production of automotive fluid systems, offering a wide range of high-performance in-line and in-tank fuels pumps, complete drop-in fuel modules, fuel pump kits and installation accessories.

2020-High-Performance-Fuel-Systems-Catalog

Brochure & Installation Guides

Fuel systems can be complex, and selecting the correct components can be overwhelming. Because of this, TI Automotive is here to help you get the most out of your fuel system. With our wide variety of pumps, modules and accessories, we’re sure to have the best solution to fit your fueling needs.

Resources
WordPress Theme built by Shufflehound. Copyright ©2019 TI Automotive. All rights reserved. Privacy Policy
